Titanium grade 2 Grede 1 Tubing 25.4x1.2x6000mm ASME SB338 For Heat Exchanger
Because of its strength, unique density and corrosion resistance, titanium is used for high quality tubing destined for many industries. This metal is often a better substance to use than competing materials like stainless steels or super alloys because it is so lightweight and corrosion resistant.
The density of titanium is about 60 per cent of that of steel- or nickel-based alloys. This provides significant weight savings in aerospace structures. The tensile strength is higher than that of austenitic or ferritic stainless steels. Titanium is also exceptional when it comes to corrosion resistance, out-performing stainless steels in most environments. It is non-magnetic and has good heat transfer properties, with a higher melting point than steel alloys.
Titanium is easily worked. Combine that with its strength, stiffness, toughness and heat resistance and it’s a very desirable metal for high performance metal tubing. At Superior Tube, we manufacture titanium tubes used in aircraft hydraulic systems, medical implants, offshore drilling rig components, subsea equipment, and marine and chemical processing plants.

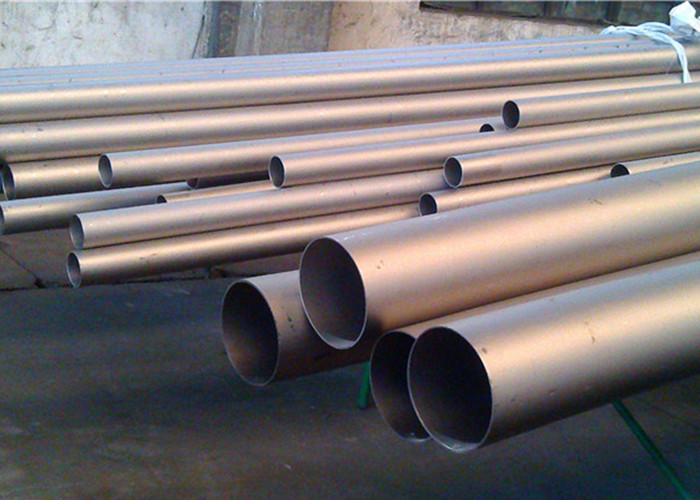

Titanium tubing
| Technique | Titanium Welded Tubing, Titanium Seamless Tubing |
| Grade | Gr1,Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, Gr23 |
| Standard | ASTM B337,ASTM B338,ASTM B861,ASTM B862,DIN 17861 |
| Size | OD(0.5-300)mm*WT(0.1-25)mm*L(MAX 20000)mm |
| Shape | Round, Square |
| Surface | Polished or According To Customer's Requirement |
| Packing | Seaworthy Wooden Case |
Our extensive selection includes seamless aircraft quality titanium tubing, welded titanium tubing, drawn titanium tubing. Browse our selection of aircraft quality titanium tubing here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.
Typical Manufacturing Specifications:
ASTM B338
ASME SB338
Also individual customer specifications.
Available Tube Product Forms:
Straight Length.
Coiled.
Typical Applications:
Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
Seawater desalination equipment
Bike rack
Marine pressure tube
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
| Alloy | UNSNumber | C | Mn Max | Ni Min | Ni Max | Cr Min | Cr Max | Mo Min | Mo Max | Density g/cm3 | Density lb/in3 | UTS KSI | UTS MPA | YS KSI | YS MPA | % El in 2" |
| Ti CP (Grade 2) | R50400 | 0.1 | 0.15 | | | | | | | 4.5 | 0.162 | 80 | 552 | 40/60 | 276/414 | 20 |
Chemical composition reference analysis (as weight %)
| ASTM Grade | Nominal
Composition | Forms |
| Cold-Reduced | Hot-Rolled | Hot-Extruded |
| Grade 1 | Ti | x | x | x |
| Grade 2 | Ti | x | x | x |
| Grade 4 | Ti | x | x | x |
| Grade 7 | Ti (Gr2) 0.2 Pd | x | x | |
| Grade 12 | Ti- 0.3Mo-0.8Ni | x | x | x |
| Grade 16 | Ti (Gr2) 0.07 Pd | x | x | x |
| Products | Processing Standard | Grade | Size |
| Titanium Welded Tube, Pipe | ASME SB338, ASME SB862 | GR1, GR2, GR7, GR12 | OD: (0.315”-48”) WT: (0.0197”-0.5”) Length: at random length |
Product Tags:
|
|

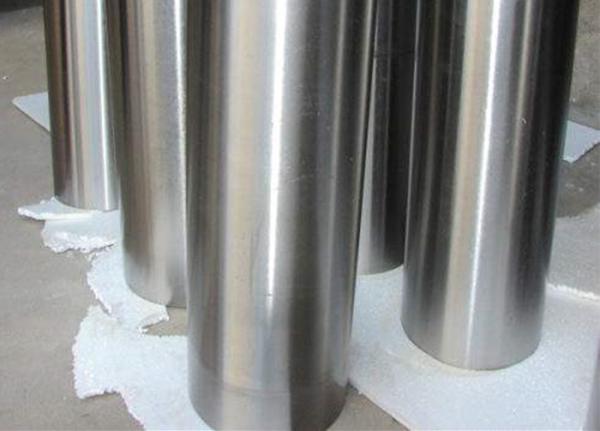

High Strength Welded Titanium Tubing 20ft Length For Aircraft Hydraulic System Images
|
